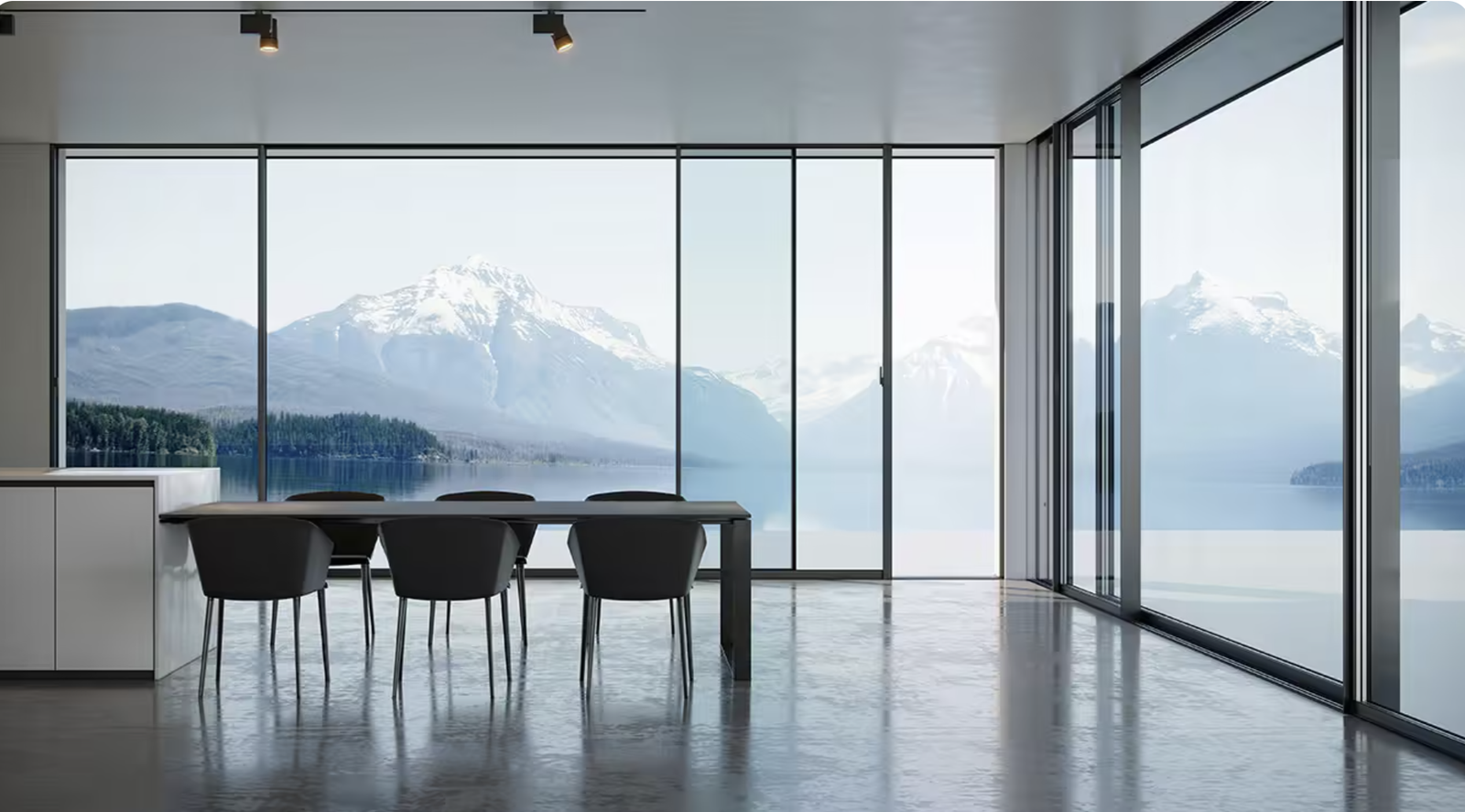

| PD65SS Sliding door | ||
| Design | ||
| Opening | Sliding | |
| Min.-max. basic depth(mm) | 173 | |
| Vent depth(mm) | 65 | |
| Face width of interlock section(mm) | 28 | |
| Face width of frame(mm) | 55 | |
| Face width of vent frame(mm) | 36.6 | |
| Face width of meeting stile(mm) | No | |
| Face width of top outer frame(mm) | 75 | |
| Face width of bottom outer frame(mm) | 55 | |
| Min.-max. face width of mullion(mm) | 55 | |
| Threshold height(mm) | 50 | |
| Reinforcement interlock section | No | |
| Number of tracks | Double track | |
| Concealed drainage | Yes | |
| Ventilation vent | No | |
| Integral glass guardrail | No | |
| Fly screen | No | |
| Surface finish | MED | |
| Vent Data | ||
| Min.-max. vent height(mm) | 1600-3500 | |
| Min.-max. vent width(mm) | 800-2800 | |
| Max. vent size(m2) | 7.2 | |
| Max. vent weight(Kg) | 540 | |
| Min.-max. glass thickness(mm) | 38/48 | |
| Glazing method | Wet glazing | |
| Implement Scenario | ||
| Façade insert unit | Yes | |
| Conservatory insert unit | Yes | |
| Parameter | ||
| U values in W/(㎡·K) | 1.7 | |
| Sound reduction(dB), depending on glazing type | 32 | |
| Air permeability(m3/(m.h)) | 1.0 | |
| Water tightness(Pa) | 350 | |
| Wind load resistance(KPa) | ≤2.5 | |
| Burglar resistance | RC2 | |
