7 Key Dimensions in High-End Window & Door Design — EP 4: Façade Composition & Window Configuration Design

Under the premise of meeting ventilation requirements and ensuring glass maintainability, reducing the number of operable sashes while increasing the size of individual opening panels can significantly improve overall window performance. Compared with excessive segmentation, rationally reducing opening panels helps achieve: Better airtightness Improved water tightness Higher thermal insulation performance Cleaner panoramic views Greater façade transparency Lower overall hardware and maintenance costs In practical residential applications, oversized operable sections are not always necessary. Instead, a balanced combination of fixed glazing and functional operable panels often creates a more elegant and technically efficient solution. For naturally ventilated residential buildings, international standards commonly require minimum operable ventilation areas. Similar principles can be found in regulations across Europe, Australia, Singapore and other major markets: Bedrooms, living rooms and naturally ventilated bathrooms generally require effective ventilation openings proportional to floor area Kitchens typically require larger ventilation openings due to heat and moisture generation Public buildings generally require minimum operable window ratios relative to façade glazing area for natural ventilation purposes These principles support healthier indoor environments while maintaining façade integrity.

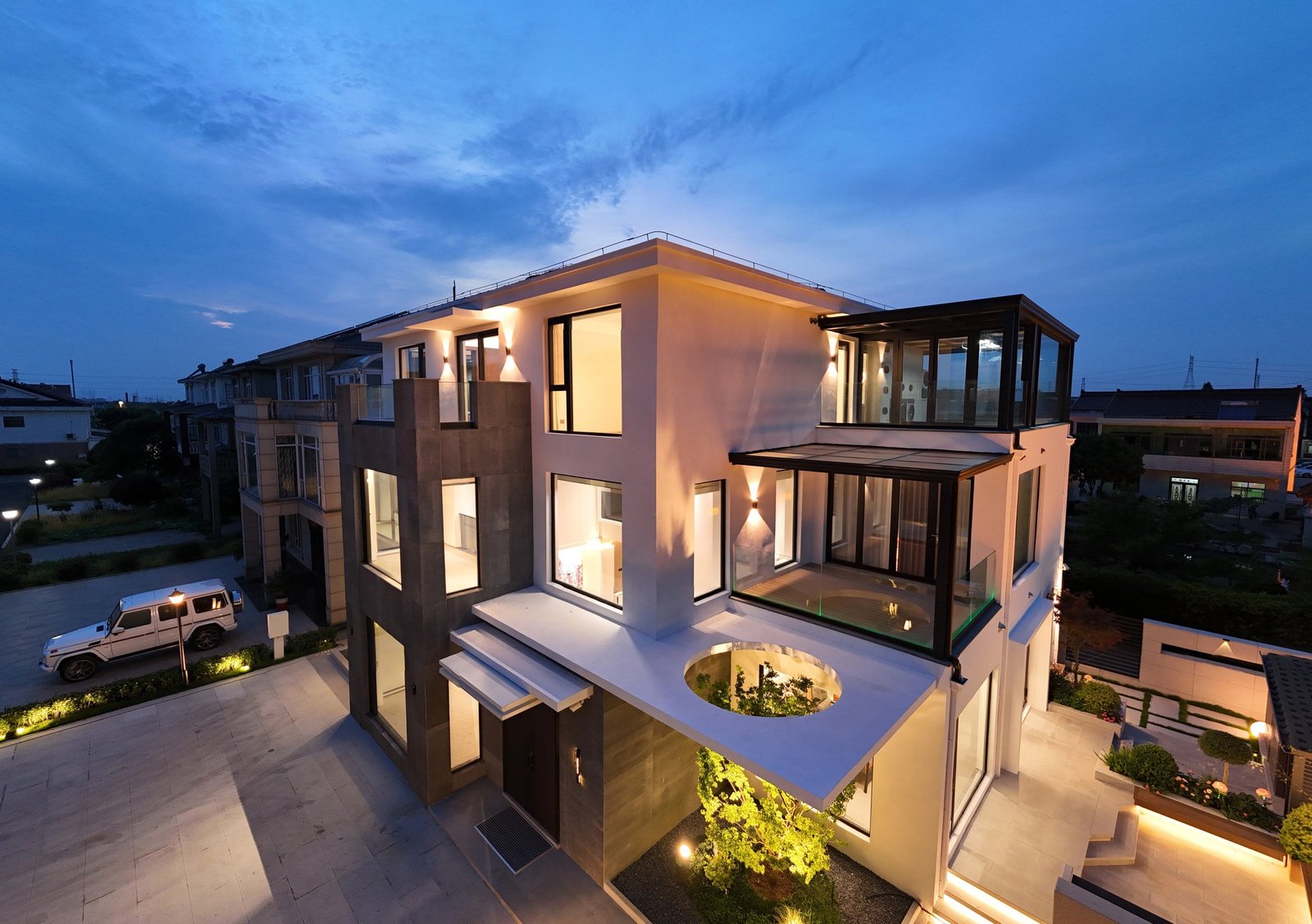

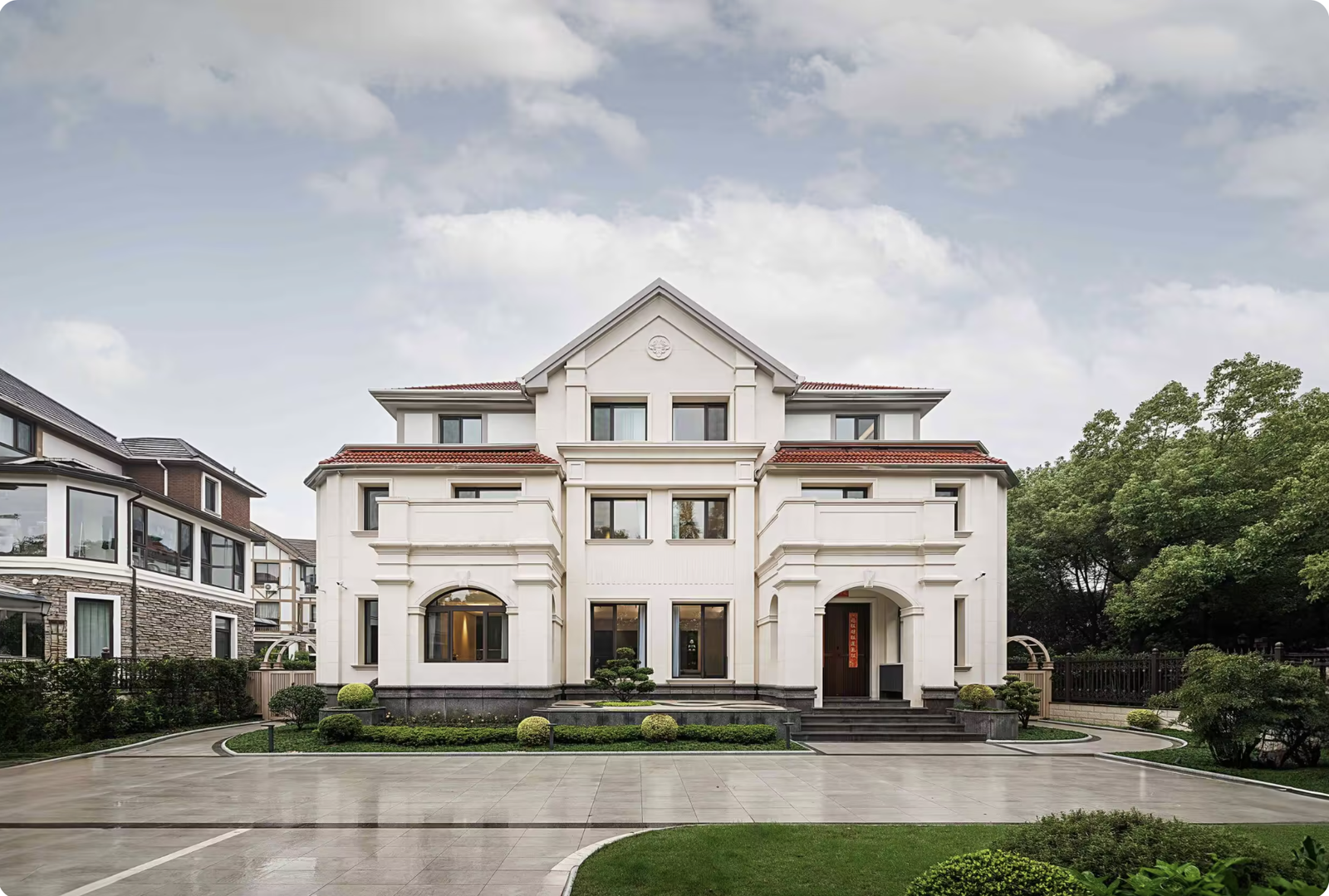

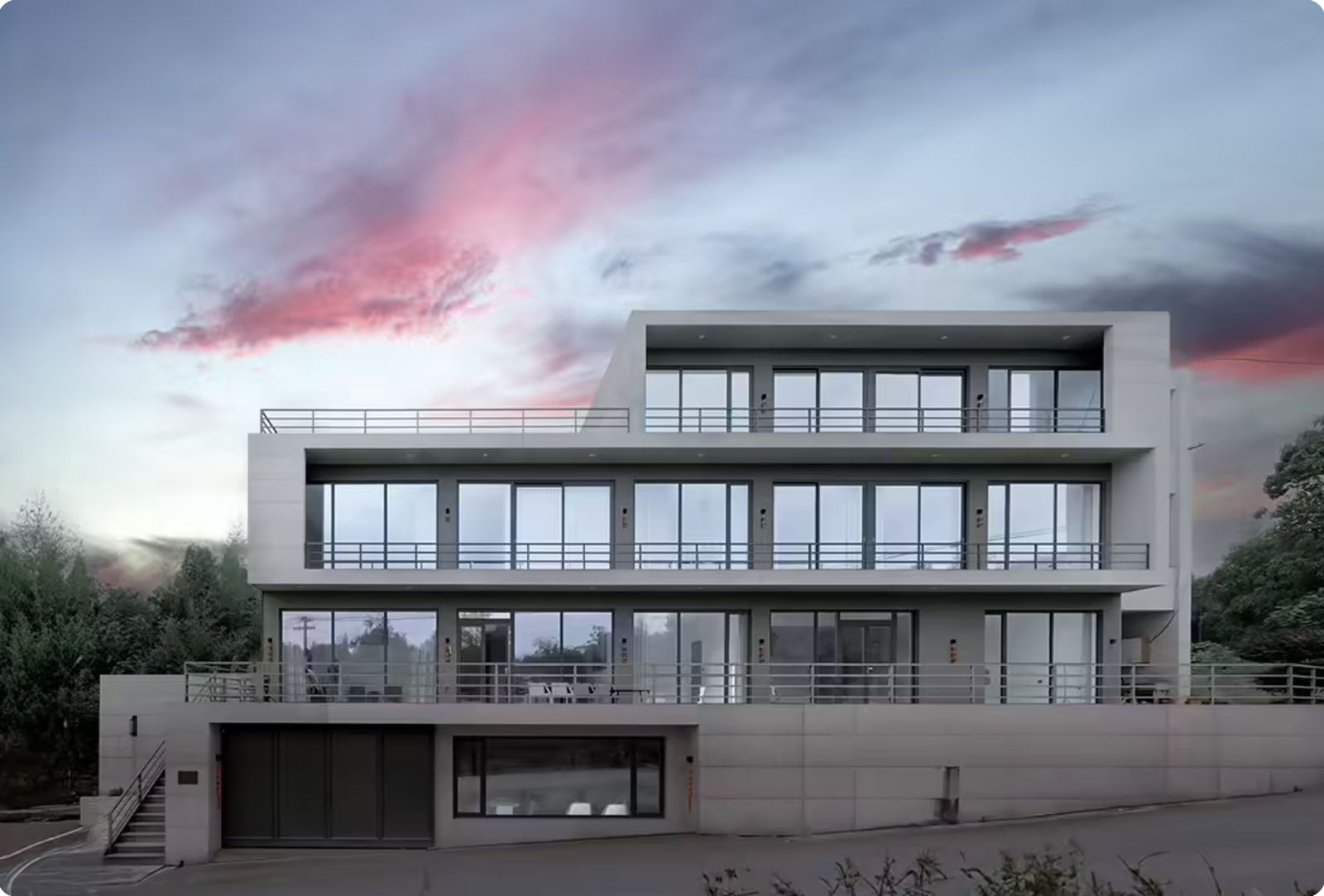

Window proportions and mullion layouts should always coordinate with the overall architectural language of the building. Good façade composition typically follows several core principles: Window heights on the same floor should remain visually aligned Window widths within the same elevation should maintain consistent rhythm Mullion positioning should reinforce the architectural grid Irregular segmentation should appear intentional rather than accidental When window configurations lack consistency, even premium materials can appear visually disordered. A well-balanced façade improves: Architectural identity Visual harmony Perceived project value Exterior elegance Interior spatial rhythm In contemporary luxury residential architecture, façade uniformity has become one of the most important indicators of design sophistication.

Window opening direction should never be designed independently from interior planning. Designers must carefully evaluate: Furniture placement Faucet positions Shower enclosures Kitchen cabinetry Human circulation routes Ventilation pathways Practical design strategies include: Position openings closer to wall edges This improves usable circulation space and reduces interference with furniture. Align operable panels with doorways where possible This promotes smoother cross-ventilation and more efficient airflow movement. Check 90-degree opening clearance Inward-opening windows must be evaluated against surrounding objects to prevent collisions during operation. This issue commonly occurs in: Bathrooms with shower enclosures Kitchens with faucets or upper cabinets Compact apartments with limited circulation space In such situations, adjusting the window configuration or introducing fixed lower panels can significantly improve usability. For sliding systems, frequently used operable panels should preferably be positioned on the interior track for easier cleaning and daily operation.

When preparing window elevation drawings, designers should clearly indicate window sill levels relative to the finished floor level (FFL). Typical notation methods include: P + 900 mm (P = finished interior floor level) This becomes particularly important when different rooms contain varying floor heights. Correct height annotation helps determine: Whether transoms become top lights or bottom lights Operable sash positioning Visual alignment between spaces Furniture coordination User comfort during operation In most residential applications: Lower horizontal mullion heights are commonly positioned between 850 mm–1100 mm Comfortable operable sash heights are generally within 1200 mm–1800 mm These dimensions typically provide the best balance between ergonomics, visibility and safety.

Proper sash sizing directly affects: Ventilation efficiency Operational comfort Hardware durability Safety performance Tilt-and-turn windows Recommended sash width: Approximately 700 mm–900 mm Tilt ventilation is the primary operating mode in many modern residential projects. If the sash becomes too narrow, the top ventilation opening becomes insufficient. Outward casement windows Recommended sash width: Approximately 550 mm–700 mm If outward-opening panels become excessively wide: Operation becomes difficult Wind pressure increases safety risk Hardware stress rises significantly Recommended maximum sash height: Approximately 1600 mm Inward casement windows Recommended sash width: Approximately 600 mm–650 mm Excessively wide inward-opening panels occupy interior space and reduce usability after opening. Proper dimensional control greatly improves long-term user experience and system reliability.

Door dimensions should prioritise usability, safety and structural stability. General recommendations: Door height should preferably remain below 2600 mm Single door leaf width should preferably remain below 1150 mm In most residential applications, outward-opening doors are preferred because they: Save interior usable space Improve circulation efficiency Reduce interference with furniture Emergency escape doors should always open outward in accordance with international fire safety principles and evacuation logic.

Window compositions should follow proportional design principles rather than arbitrary segmentation. Best practice includes: Equal division layouts Golden ratio-inspired proportions Clear visual hierarchy Avoid: Nearly equal but intentionally uneven segmentation Random mullion placement Overly fragmented compositions When horizontal mullions are required, avoid positioning them directly within the primary viewing zone (approximately 1.5 m–1.8 m above floor level), where they may obstruct sightlines and reduce panoramic visual experience. This principle becomes especially important in: Living rooms Panoramic glazing Villas Sea-view or mountain-view projects

For curved fixed glazing systems, vertical mullions should preferably be avoided at the center apex of the arch to preserve uninterrupted views. In curved and arched window systems, designers must also consider: Minimum profile bending radius Glass fabrication feasibility Transportation limitations Installation tolerances Structural load distribution In most aluminium systems, the practical minimum bending radius is approximately 350 mm, although this varies depending on profile structure and alloy characteristics. Curved systems often require early coordination between: Façade consultants Glass manufacturers Aluminium fabricators Structural engineers The success of curved glazing design depends heavily on early-stage technical integration.

The most successful window systems are rarely the most complicated. They are the most rational. When façade composition, ventilation logic, opening strategy and proportion control work together coherently, architecture becomes: More elegant More functional More comfortable More durable More commercially competitive True high-end design is ultimately about balance.
